Tuscan Order Vignola Column

The Tuscan Order is used in minor buildings such as stables, baths, river crossings, territory fences, garden decorative elements, etc.

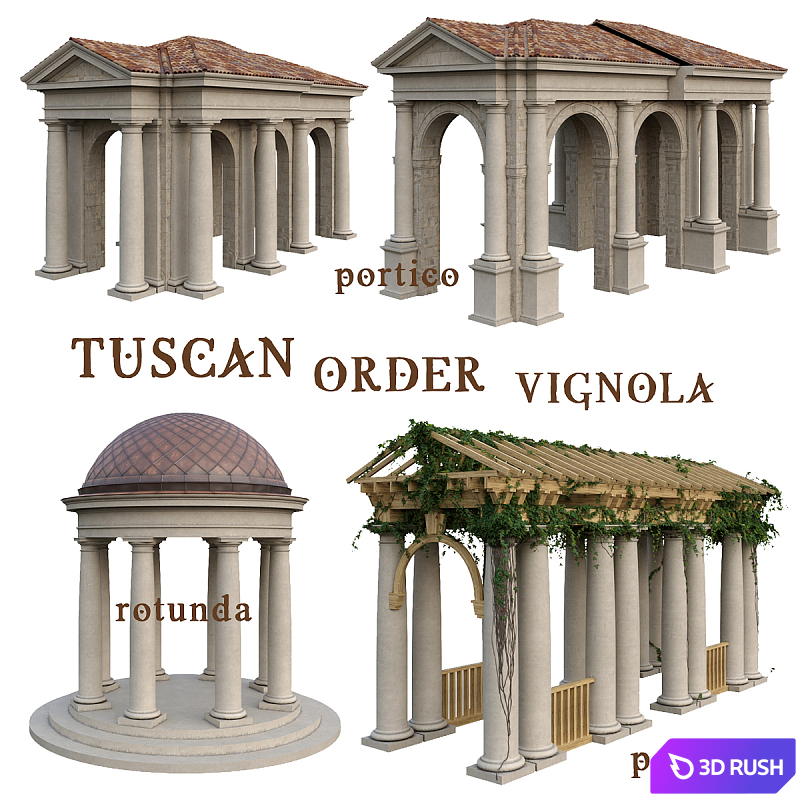

Examples of the application of the Tuscan order for the construction of porticos of 4 types:
- with three-quarter columns, without a pedestal
- with three-quarter columns, with a pedestal
- with freestanding columns and pilasters, without a pedestal
- with freestanding columns and pilasters, with a pedestal
The value of the Module (the lower radius of the column trunk) is taken to be 180 mm.

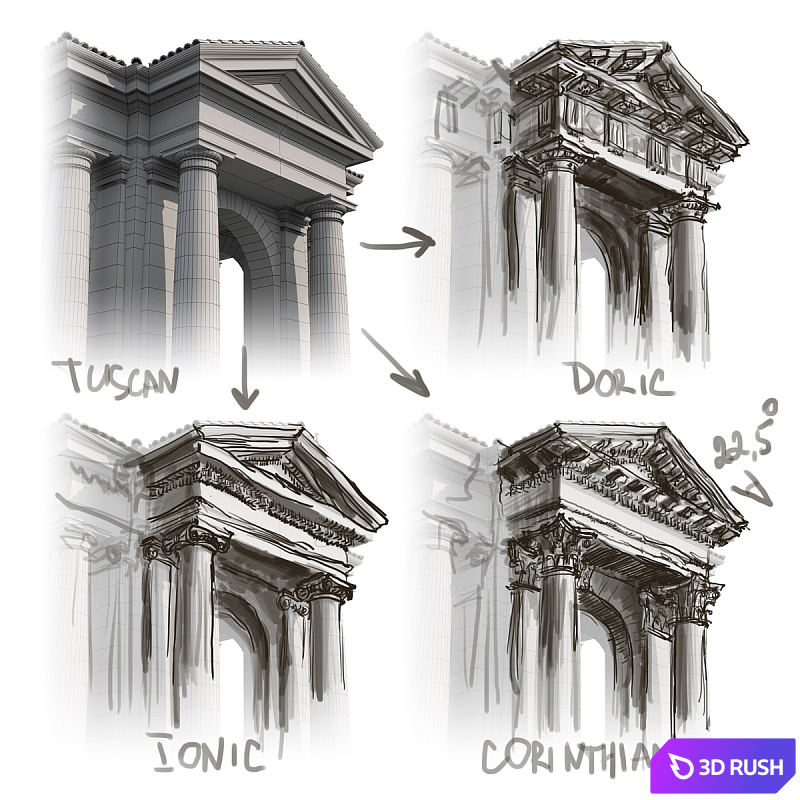

The value of the slope of the roof is 22.5 degrees.
Dimensions of the model - 9x17x5 (h) m.
For a close angle to geometry, the chamfer modifier was used.

- The model at the origin, the pivots of the objects in the center
- Columns, pedestals - instance
- No groups
- Normal is not inverted
- X-form done
- Geometry, textures and materials have the correct names, without the Cyrillic alphabet. Texture paths are clipped
- There is no excess geometry, everything is in a single layer

Number of polygons:

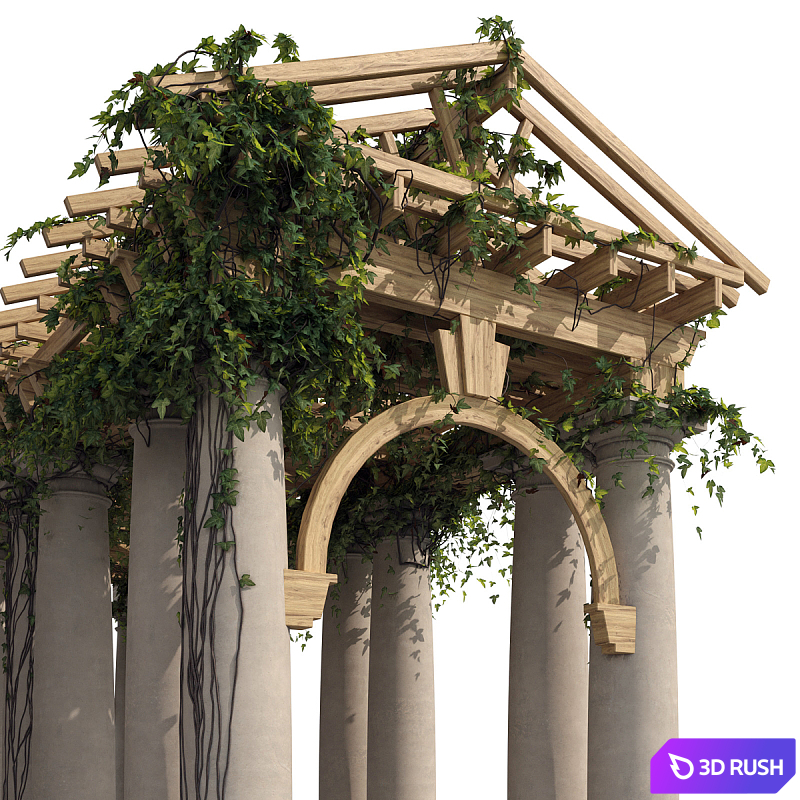

ivy - 1 815 180
tile - 235 140
architecture - 86 420

Platform:	3dsMax 2015 + fbx
Render:	Corona
Size:	136.537 MB
Colors:
Style:	Classic
Materials:	Stone
